About RMUX

A local client/server terminal multiplexer written from scratch in Rust. One daemon and one wire protocol behind three public surfaces: a tmux-compatible CLI, a typed Rust SDK, and a ratatui widget.

Native, no WSL

Native ConPTY with named pipes on Windows. Unix PTYs with Unix-domain sockets on Linux and macOS. The daemon never opens a network listener.

Programmable from Rust

Typed handles for Session, Window, Pane. Take structured snapshots, send keys, wait for output, subscribe to pane events. No TTY scraping.

Drop-in tmux

The full tmux 4.0.1 command surface — 90 commands, persistent sessions, your existing scripts and key bindings keep working.

Installation

Install the RMUX binary from the repository and add the SDK to your Cargo project.

CLI

cargo install --path . --locked

SDK

[dependencies]
rmux-sdk = "0.1"
tokio = { version = "1", features = ["macros", "rt-multi-thread"] }

Configuration

rmux reads a config file at startup. Search order below — the first match wins.

Example

# Prefix key
set -g prefix C-a
unbind C-b
bind C-a send-prefix

# Splits
bind | split-window -h
bind - split-window -v

# Mouse
set -g mouse on

Architecture

rmux runs as a local daemon. Three public surfaces — CLI, SDK, ratatui widget — share one wire protocol.

rmux runs as a local daemon that owns sessions, windows, panes, and the PTY processes inside them. Three public surfaces — a rmux CLI, a rmux-sdk Rust crate, and a ratatui-rmux widget — talk to the daemon over the same wire protocol, so anything one surface can do, the others can do too.

Runtime shape

Public surfaces

• rmux — tmux-compatible CLI. The full tmux 4.0.1 command surface plus rmux-specific primitives like wait-for.
• rmux-sdk — public Rust SDK over the daemon. Typed handles, async, no exposed wire-format types.
• ratatui-rmux — ratatui integration consuming the SDK; embedding a live pane is a widget rather than a custom driver.

Workspace crates

Six crates are prepared for crates.io; the other six are internal building blocks. Dependencies flow one way — lower crates never depend on rmux-server or rmux.

Protocol v1

Every frame on the wire follows the same envelope, defined in rmux-proto:

magic byte      0x52
wire version    varint (LEB128)
payload length  little-endian u32
payload         bincode v1 DTO

The supported wire revisions are tracked in V1_FRAME_LEDGER; breaking changes bump the varint and add a new entry rather than mutating the existing frame.

Platform model

• Linux / macOS — Unix-domain sockets for IPC, native Unix PTYs.
• Windows — named pipes for IPC, native ConPTY.
• Local-only. The daemon never opens a network listener.

From the shell

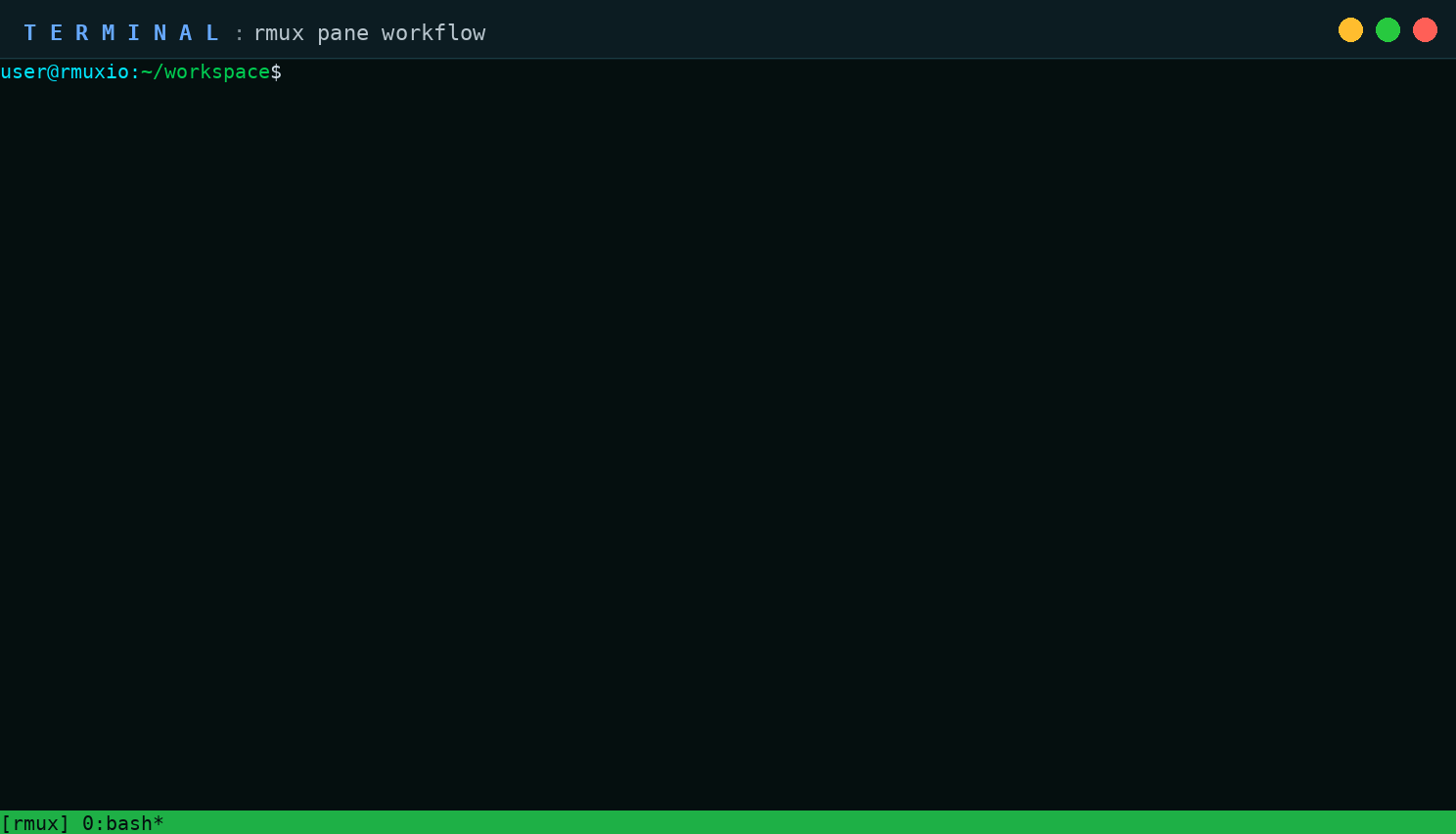

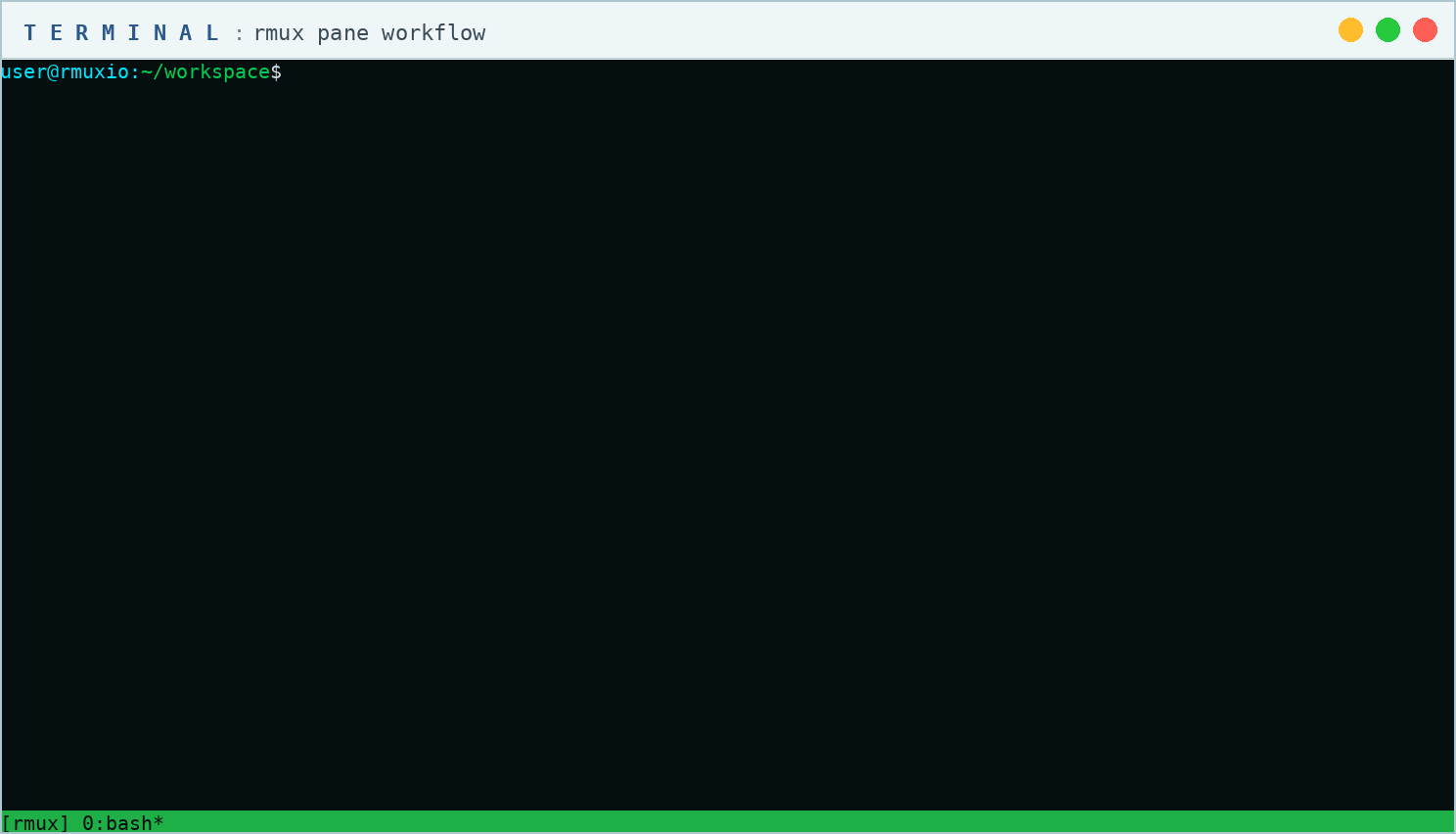

Create a detached session, send a command, wait for a known line in the output, capture the pane, then attach for interactive use. Everything below works the same as in tmux.

rmux new-session -d -s demo
rmux split-window -h -t demo
rmux send-keys -t demo 'cargo test' Enter
rmux wait-for -t demo 'test result: ok'
rmux capture-pane -p -t demo
rmux attach-session -t demo

From Rust

Start or connect to the daemon, ensure one session, write text, wait for it, then capture a snapshot.

let pane = session.pane(0, 0);
pane.send_text("echo hello\n").await?;
pane.wait_for_text("hello").await?;

Run detached

Spawn a long-running process inside a fresh session and walk away — the daemon supervises it while the agent moves on.

use rmux_sdk::{EnsureSession, ProcessSpec, Rmux};
let rmux = Rmux::builder().connect_or_start().await?;
let _session = rmux
    .ensure_session(
        EnsureSession::try_named("api-server")?
            .create_or_reuse()
            .detached(true)
            .process(ProcessSpec {
                command: Some(vec![
                    "python3".into(),
                    "-m".into(),
                    "http.server".into(),
                    "8080".into(),
                ]),
                environment: None,
            }),
    )
    .await?;
// The handle is dropped here. The daemon keeps the python server
// alive in the background — the agent can move on and reconnect
// to inspect output later.
